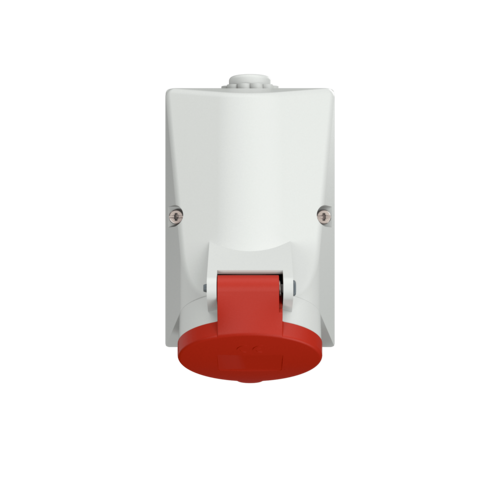

MENNEKES Wall mounted socket 1418
MENNEKES Wall mounted socket 1418 images3d

Wall mounted socket 1418

Poles
Voltage
Clock position
  • screw terminals
  • internal fixing
  • one cable entry at top, two blind cable entries (can be cut out) at the bottom
  • enclosure base can be turned 180°
  • sockets are designed for adding an auxiliary contact switch
  • Part no.1418
  • EAN4015394010487
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Wall mounted socket 1418

Ampere 16 A
Poles 4 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP44
Weight 293 g
Certifications VDE

Directives

Wall mounted socket 1418

Appropriate accessories

Wall mounted socket 1418

MENNEKES Auxiliary contact block 41000

Auxiliary contact block

Part no. 41000

for sockets and panel mounted sockets 16 A and 32 A of product groups 1018, 1019, 1041, 1049, 1132, 1141, 1146 and 1148 as well as 32 A of product groups 1044, 1048, 1133 and 1135, funktion: change-over contact = NC/NO, connected load: 16 A (inductive 4 A), 250 V AC

MENNEKES Weather shield 15542

Weather shield

Part no. 15542

made from stainless steel (material 1.4301), with side blinds, for mounting on column, dimensions (H x W x D): 226 x 155 x 131/52 mm
