MENNEKES Wall mounted socket 2676A
MENNEKES Wall mounted socket 2676A images3d

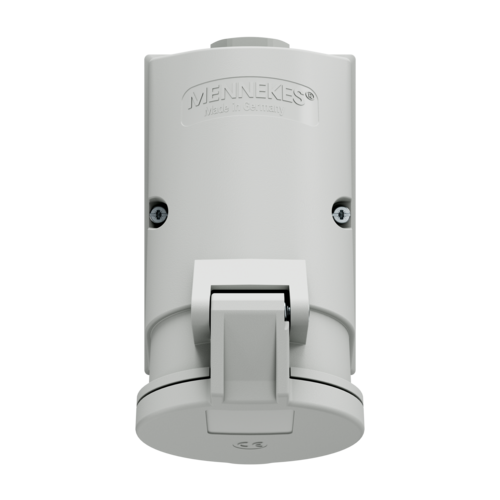

Wall mounted socket 2676A

Poles
Voltage
Clock position
  • screw terminals
  • internal fixing
  • one cable entry at top and one blind entry (can be cut out) at the bottom
  • enclosure base can be turned 180°
  • receptacles are designed for adding an auxiliary contact switch
  • Part no.2676A
  • EAN4015394015970
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Wall mounted socket 2676A

Ampere 32 A
Poles 5 p
Voltage 50-500 V
Clock position 1 h
Connection technology Screw terminals
Contact standard
Protection type IP44
Weight 405 g
Certifications VDE

Directives

Wall mounted socket 2676A

Appropriate accessories

Wall mounted socket 2676A

MENNEKES Weather shield 15542

Weather shield

Part no. 15542

made from stainless steel (material 1.4301), with side blinds, for mounting on column, dimensions (H x W x D): 226 x 155 x 131/52 mm
