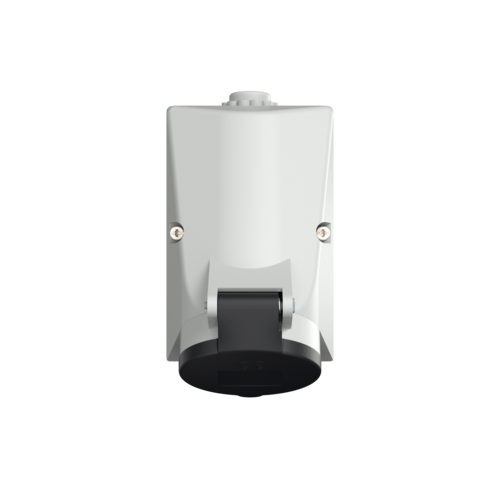

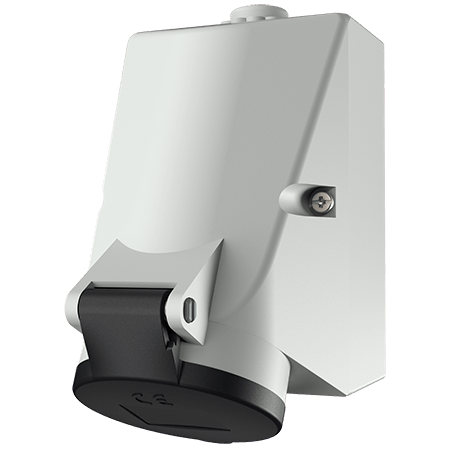

MENNEKES Wall mounted socket 3043
MENNEKES Wall mounted socket 3043 images3d

Wall mounted socket 3043

Poles
Voltage
Clock position
  • screw terminals
  • internal fixing
  • one cable entry at top, two blind cable entries (can be cut out) at the bottom
  • enclosure base can be turned 180°
  • sockets are designed for adding an auxiliary contact switch
  • Part no.3043
  • EAN4015394017530
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Wall mounted socket 3043

Ampere 16 A
Poles 5 p
Voltage 500 V
Clock position 7 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP44
Weight 291 g
Certifications EAC
CQC

Directives

Wall mounted socket 3043

Appropriate accessories

Wall mounted socket 3043

MENNEKES Weather shield 15542

Weather shield

Part no. 15542

made from stainless steel (material 1.4301), with side blinds, for mounting on column, dimensions (H x W x D): 226 x 155 x 131/52 mm
