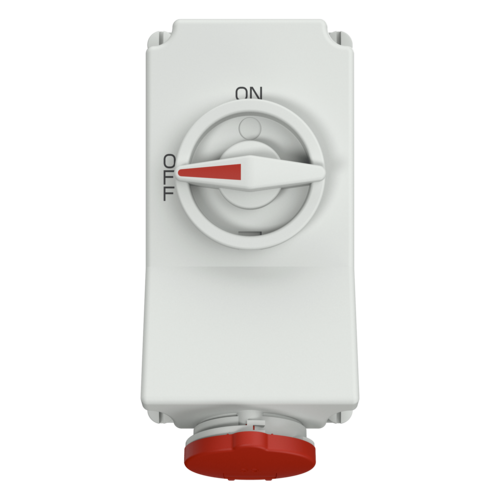

MENNEKES Wall mounted socket 5103A
MENNEKES Wall mounted socket 5103A images3d

Wall mounted socket 5103A

Ampere 16 A 32 A
Poles
Voltage
Clock position
  • screw terminals
  • switched
  • mechanical DUO-interlock
  • sockets can be padlocked
  • Part no.5103A
  • EAN4015394024538
  • Std. Pack. 1
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Wall mounted socket 5103A

Ampere 16 A
Poles 5 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP44
Enclosure material Plastic
Weight 1016 g
Certifications VDE
CQC

Datasheets & Downloads

Wall mounted socket 5103A

Product infoWall mounted socket 5103A PDF, 179 KB
Manufacturer‘s declarationWall mounted socket 5103A PDF, 50 KB
CAD data STPWall mounted socket 5103A ZIP, 572 KB
CAD data 3D DWGWall mounted socket 5103A ZIP, 2 MB
Dimensional drawing portraitWall mounted socket 5103A PNG, 123 KB
Dimensional drawing landscape formatWall mounted socket 5103A PNG, 124 KB

Directives

Wall mounted socket 5103A

REACh
RoHS
