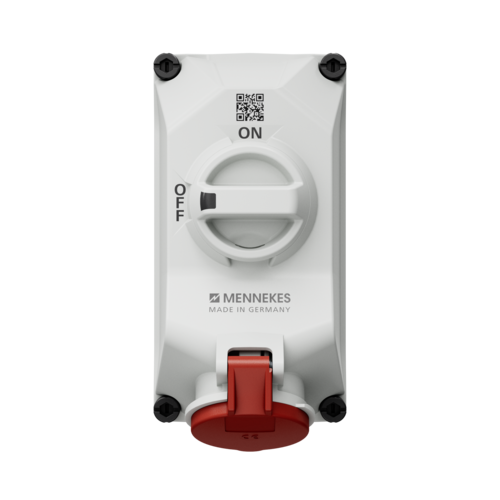

MENNEKES Wall mounted socket 5601506G
MENNEKES Wall mounted socket 5601506G images3d

Please accept marketing-cookies to watch this video.

Video varieties

Wall mounted socket 5601506G

Ampere 16 A 32 A
Poles
Voltage
Clock position
  • screw terminals
  • pre-wired for installation
  • X-CONTACT®
  • switched
  • mechanical DUO-interlock
  • 3 pole switch
  • sockets can be padlocked
  • Part no.5601506G
  • EAN4015394298052
  • Std. Pack. 1 Qty.
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name
X-CONTACT®

X-CONTACT®

Innovative contact sleeve technology

Read more

Technical specifications

Wall mounted socket 5601506G

Ampere 16 A
Poles 5 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact X-CONTACT
Protection type IP44
Enclosure material Plastic
Weight 1351 g
Certifications CQC
VDE

Datasheets & Downloads

Wall mounted socket 5601506G

Product infoWall mounted socket 5601506G PDF, 1 MB
Manufacturer‘s declarationWall mounted socket 5601506G PDF, 211 KB
CAD data STPWall mounted socket 5601506G ZIP, 3 MB
CAD data 3D DWGWall mounted socket 5601506G ZIP, 7 MB
Mounting instructionsWall mounted socket 5601506G PDF, 4 MB
Mounting instructionWall mounted socket 5601506G PDF, 562 KB
Dimensional drawing portraitWall mounted socket 5601506G PNG, 294 KB
Dimensional drawing landscape formatWall mounted socket 5601506G PNG, 310 KB

Videos

Wall mounted socket 5601506G

Please accept marketing-cookies to watch this video.

Video varieties

Please accept marketing-cookies to watch this video.

Video mounting instructions

Directives

Wall mounted socket 5601506G

REACh
RoHS

Appropriate accessories

Wall mounted socket 5601506G

MENNEKES Cable gland 990612

Cable gland

Part no. 990612

M 32 - clamping/sealing range 13-21 mm, IP67, deep black RAL 9005, individual packed

more
MENNEKES Cable gland 990613

Cable gland

Part no. 990613

M 25 - clamping/sealing range 9-17 mm, IP67, deep blackRAL 9005, with seal, individual packed

more
