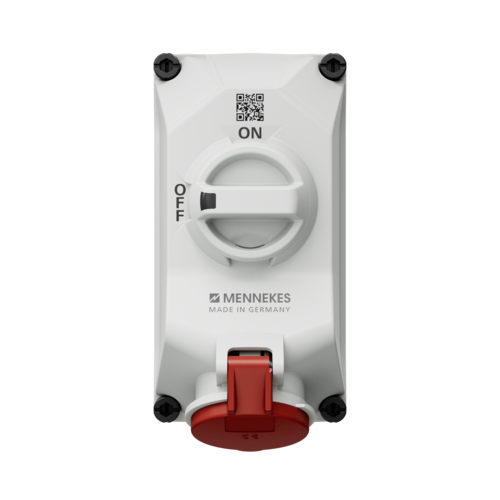

MENNEKES Wall mounted socket 5601506H
MENNEKES Wall mounted socket 5601506H images3d

Please accept marketing-cookies to watch this video.

Video varieties

Wall mounted socket 5601506H

Poles
Voltage
Clock position
  • screw terminals
  • pre-wired for installation
  • X-CONTACT®
  • switched
  • mechanical DUO-interlock
  • 3 pole switch with auxiliary contact switch 1 NC and 1 NO
  • sockets can be padlocked
  • Part no.5601506H
  • EAN4015394299127
  • Std. Pack. 1 Qty.
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name
X-CONTACT®

X-CONTACT®

Innovative contact sleeve technology

Technical specifications

Wall mounted socket 5601506H

Ampere 16 A
Poles 5 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact X-CONTACT
Protection type IP44
Enclosure material Plastic
Weight 1351 g
Certifications VDE

Videos

Wall mounted socket 5601506H

Please accept marketing-cookies to watch this video.

Video varieties

Please accept marketing-cookies to watch this video.

Video mounting instructions

Directives

Wall mounted socket 5601506H

Appropriate accessories

Wall mounted socket 5601506H

MENNEKES Cable gland 990613

Cable gland

Part no. 990613

M 25 - clamping/sealing range 9-17 mm, IP67, deep blackRAL 9005, with seal, individual packed

MENNEKES Cable gland 990612

Cable gland

Part no. 990612

M 32 - clamping/sealing range 13-21 mm, IP67, deep black RAL 9005, individual packed
