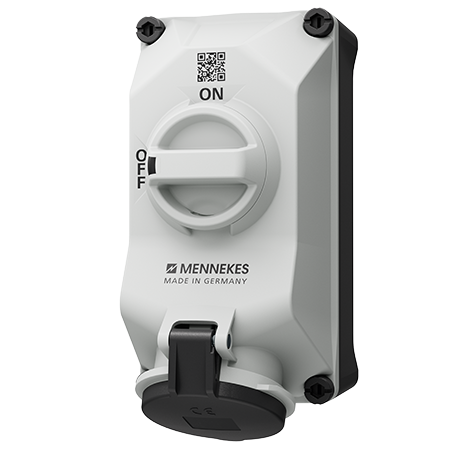

MENNEKES Wall mounted socket 5603407G

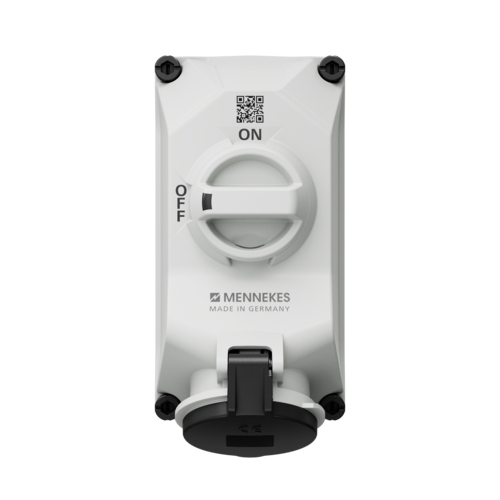

MENNEKES Wall mounted socket 5603407G images3d

Please accept marketing-cookies to watch this video.

Video varieties

Wall mounted socket 5603407G

Ampere 16 A 32 A
Poles
Voltage
Clock position
  • screw terminals
  • pre-wired for installation
  • X-CONTACT®
  • switched
  • mechanical DUO-interlock
  • 3 pole switch
  • sockets can be padlocked
  • Part no.5603407G
  • EAN4015394298588
  • Std. Pack. 1 Qty.
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name
X-CONTACT®

X-CONTACT®

Innovative contact sleeve technology

Read more

Technical specifications

Wall mounted socket 5603407G

Ampere 32 A
Poles 4 p
Voltage 500 V
Clock position 7 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact X-CONTACT
Protection type IP44
Enclosure material Plastic
Weight 1400 g
Certifications VDE

Datasheets & Downloads

Wall mounted socket 5603407G

Product infoWall mounted socket 5603407G PDF, 1 MB
CAD data STPWall mounted socket 5603407G ZIP, 3 MB
CAD data 3D DWGWall mounted socket 5603407G ZIP, 8 MB
Mounting instructionsWall mounted socket 5603407G PDF, 4 MB
Dimensional drawing portraitWall mounted socket 5603407G PNG, 295 KB
Dimensional drawing landscape formatWall mounted socket 5603407G PNG, 310 KB

Videos

Wall mounted socket 5603407G

Please accept marketing-cookies to watch this video.

Video varieties

Please accept marketing-cookies to watch this video.

Video mounting instructions

Directives

Wall mounted socket 5603407G

REACh
RoHS

Appropriate accessories

Wall mounted socket 5603407G

MENNEKES Cable gland 990613

Cable gland

Part no. 990613

M 25 - clamping/sealing range 9-17 mm, IP67, deep blackRAL 9005, with seal, individual packed

more
MENNEKES Cable gland 990612

Cable gland

Part no. 990612

M 32 - clamping/sealing range 13-21 mm, IP67, deep black RAL 9005, individual packed
