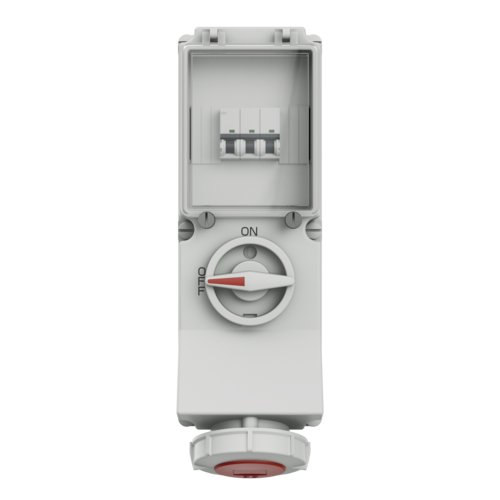

MENNEKES Wall mounted socket 7242
MENNEKES Wall mounted socket 7242 images3d

Wall mounted socket 7242

Ampere 16 A 32 A 63 A
Poles
Voltage
Clock position
  • screw terminals
  • switched
  • mechanical DUO-interlock
  • circuit breaker, K-characteristics
  • sockets can be padlocked
  • Part no.7242
  • EAN4015394119203
  • Std. Pack. 2
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Wall mounted socket 7242

Ampere 32 A
Poles 5 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP67
Enclosure material Plastic
Weight 2502 g
Certifications EAC

Datasheets & Downloads

Wall mounted socket 7242

Product infoWall mounted socket 7242 PDF, 170 KB
Manufacturer‘s declarationWall mounted socket 7242 PDF, 38 KB
CAD data STPWall mounted socket 7242 ZIP, 1 MB
CAD data 3D DWGWall mounted socket 7242 ZIP, 4 MB
Dimensional drawing portraitWall mounted socket 7242 PNG, 120 KB
Dimensional drawing landscape formatWall mounted socket 7242 PNG, 122 KB

Directives

Wall mounted socket 7242

REACh
RoHS
