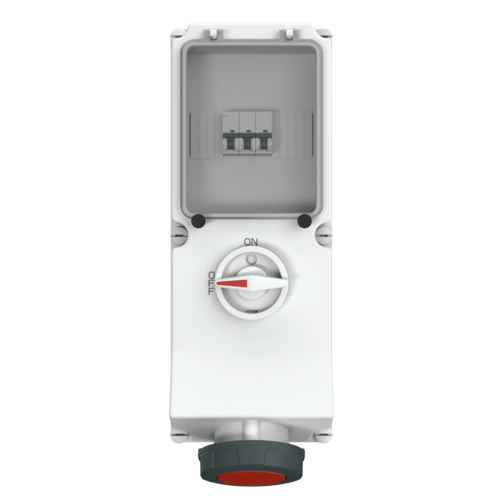

MENNEKES Wall mounted socket 7243
MENNEKES Wall mounted socket 7243 images3d

Please accept marketing-cookies to watch this video.

Video varieties

Wall mounted socket 7243

Ampere 16 A 32 A 63 A
Poles
Voltage
Clock position
  • screw terminals
  • X-CONTACT®
  • switched
  • mechanical DUO-interlock
  • circuit breaker, K-characteristics
  • sockets can be padlocked
  • Part no.7243
  • EAN4015394123972
  • Std. Pack. 1
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name
X-CONTACT®

X-CONTACT®

Innovative contact sleeve technology

Read more

Technical specifications

Wall mounted socket 7243

Ampere 63 A
Poles 4 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact X-CONTACT
Protection type IP67
Enclosure material Plastic
Weight 4298 g
Certifications CQC

Datasheets & Downloads

Wall mounted socket 7243

Product infoWall mounted socket 7243 PDF, 169 KB
Manufacturer‘s declarationWall mounted socket 7243 PDF, 38 KB
CAD data STPWall mounted socket 7243 ZIP, 6 MB
CAD data 3D DWGWall mounted socket 7243 ZIP, 2 MB
Dimensional drawing portraitWall mounted socket 7243 PNG, 120 KB
Dimensional drawing landscape formatWall mounted socket 7243 PNG, 122 KB

Videos

Wall mounted socket 7243

Please accept marketing-cookies to watch this video.

Video varieties

Directives

Wall mounted socket 7243

REACh
RoHS
