MENNEKES Wall mounted socket 9300

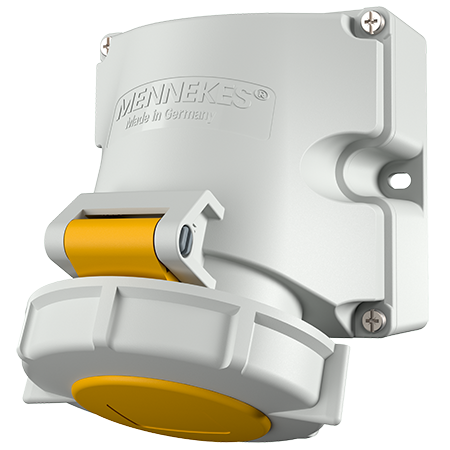

Wall mounted socket 9300

Ampere 16 A 32 A

Poles

Voltage

Clock position

screw terminals
highly resistant to chemicals
with 2 external fixing points

enclosure base can be turned 180°
sockets are designed for adding an auxiliary contact switch

Part no.9300
EAN4015394280347
Std. Pack. 5

Technical specifications

Wall mounted socket 9300

Ampere	16 A
Poles	3 p
Voltage	110 V
Clock position	4 h
Hertz	50-60 Hz
Connection technology	Screw terminals
Contact	standard
Protection type	IP67
Enclosure material	Plastic, high resistance to chemicals / AMELAN
Weight	343 g
Certifications	EAC VDE

Dimensional drawing landscape format

Datasheets & Downloads

Wall mounted socket 9300

Product infoWall mounted socket 9300 PDF, 206 KB

Manufacturer‘s declarationWall mounted socket 9300 PDF, 45 KB

Dimensional drawing portraitWall mounted socket 9300 PNG, 133 KB

Dimensional drawing landscape formatWall mounted socket 9300 PNG, 135 KB

Directives

Wall mounted socket 9300
