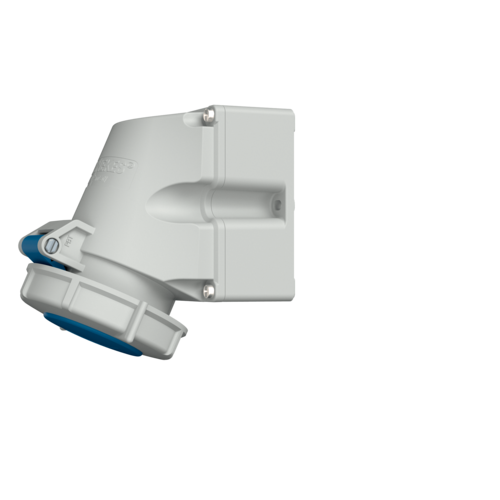

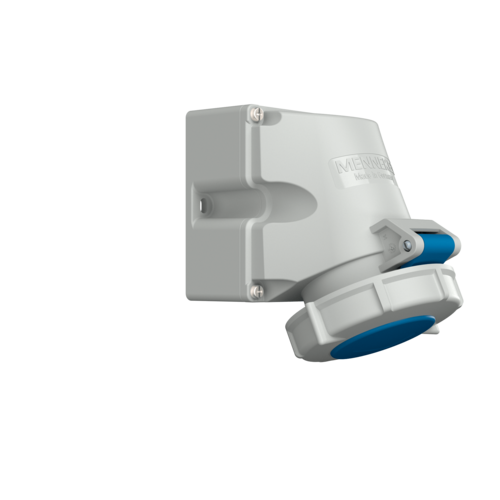

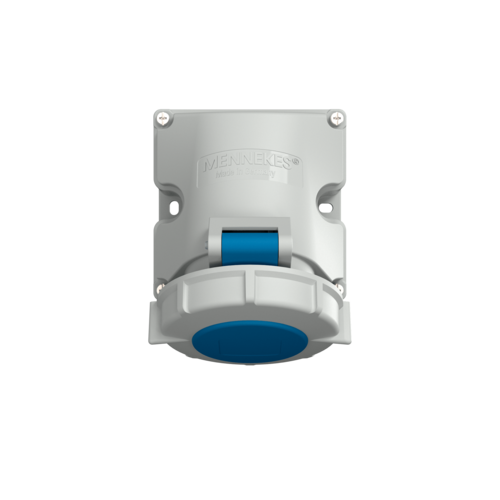

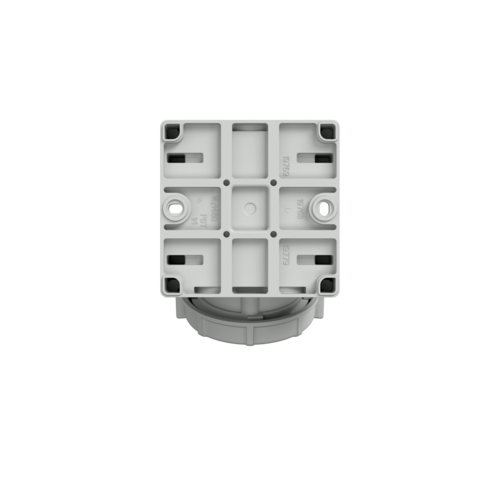

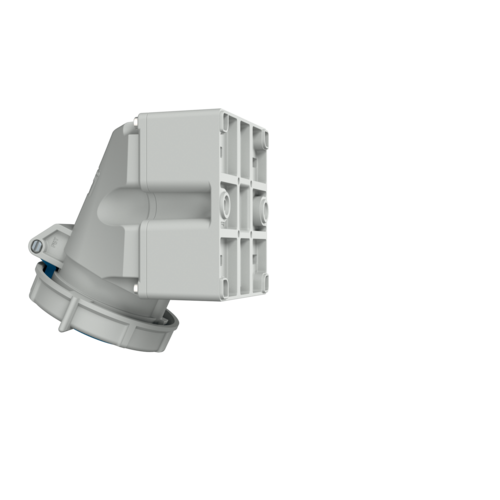

MENNEKES Wall mounted socket 9301
MENNEKES Wall mounted socket 9301 images3d

Wall mounted socket 9301

Poles
Voltage
Clock position
  • screw terminals
  • highly resistant to chemicals
  • with 2 external fixing points
  • enclosure base can be turned 180°
  • sockets are designed for adding an auxiliary contact switch
  • Part no.9301
  • EAN4015394281740
  • Std. Pack. 5
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name
Resistant to chemicals

Resistant to chemicals

Increased chemical resistance

Technical specifications

Wall mounted socket 9301

Ampere 16 A
Poles 3 p
Voltage 230 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP67
Enclosure material Plastic, high resistance to chemicals / AMELAN
Weight 343 g
Certifications VDE

Directives

Wall mounted socket 9301
