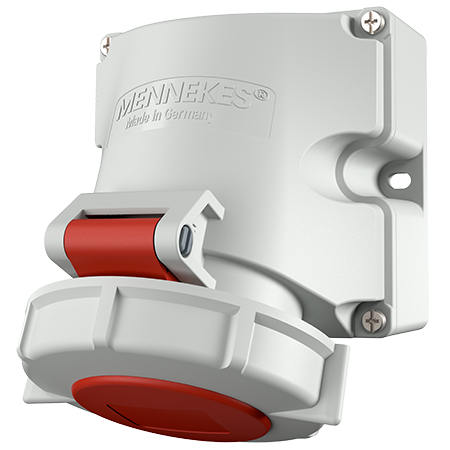

MENNEKES Wall mounted socket 9322

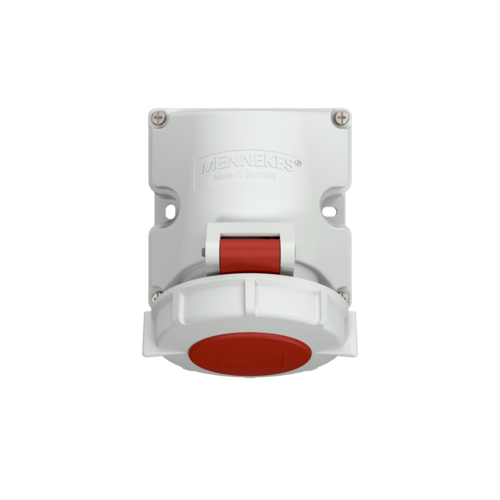

MENNEKES Wall mounted socket 9322 images3d

Wall mounted socket 9322

Ampere 16 A 32 A
Poles
Voltage
Clock position
  • screw terminals
  • highly resistant to chemicals
  • with 2 external fixing points
  • enclosure base can be turned 180°
  • sockets are designed for adding an auxiliary contact switch
  • Part no.9322
  • EAN4015394281757
  • Std. Pack. 5

Technical specifications

Wall mounted socket 9322

Ampere 16 A
Poles 4 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP67
Enclosure material Plastic, high resistance to chemicals / AMELAN
Weight 379 g
Certifications EAC
VDE

Datasheets & Downloads

Wall mounted socket 9322

Product infoWall mounted socket 9322 PDF, 208 KB
Manufacturer‘s declarationWall mounted socket 9322 PDF, 38 KB
Dimensional drawing portraitWall mounted socket 9322 PNG, 133 KB
Dimensional drawing landscape formatWall mounted socket 9322 PNG, 135 KB

Directives

Wall mounted socket 9322

REACh
RoHS

Appropriate products

Wall mounted socket 9322 with IP67

MENNEKES Plug AM-TOP® 282

Plug AM-TOP®

Part no. 282

  • Protection type: IP67
  • Ampere: 16 A
  • Poles: 4 p
  • Voltage: 400 V
  • Connection technology: Screw terminals
more
MENNEKES Connector AM-TOP® 544

Connector AM-TOP®

Part no. 544

  • Protection type: IP67
  • Ampere: 16 A
  • Poles: 4 p
  • Voltage: 400 V
  • Connection technology: Screw terminals
more
MENNEKES Panel mounted socket 1479

Panel mounted socket

Part no. 1479

  • Protection type: IP67
  • Ampere: 16 A
  • Poles: 4 p
  • Voltage: 400 V
  • Connection technology: Screw terminals
more
MENNEKES Wall mounted socket 5600A

Wall mounted socket

Part no. 5600A

  • Protection type: IP67
  • Ampere: 16 A
  • Poles: 4 p
  • Voltage: 400 V
  • Connection technology: Screw terminals
more

Appropriate accessories

Wall mounted socket 9322

MENNEKES Weather shield 15542

Weather shield

Part no. 15542

made from stainless steel (material 1.4301), with side blinds, for mounting on column, dimensions (H x W x D): 226 x 155 x 131/52 mm
