MENNEKES Wall mounted socket 9342
MENNEKES Wall mounted socket 9342 images3d

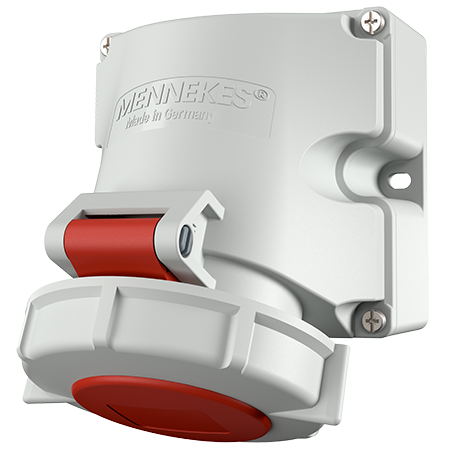

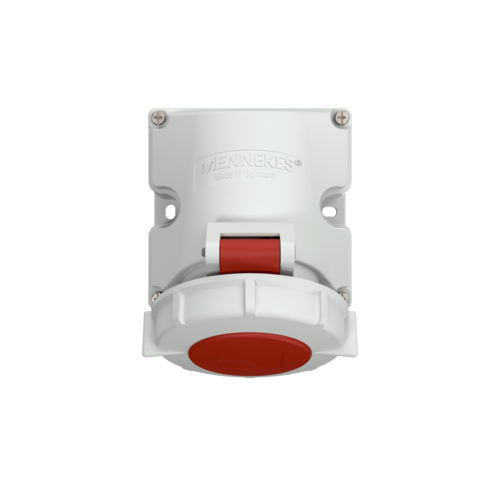

Wall mounted socket 9342

Poles
Voltage
Clock position
  • screw terminals
  • highly resistant to chemicals
  • with 2 external fixing points
  • enclosure base can be turned 180°
  • sockets are designed for adding an auxiliary contact switch
  • Part no.9342
  • EAN4015394281382
  • Std. Pack. 5
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name
Resistant to chemicals

Resistant to chemicals

Increased chemical resistance

Technical specifications

Wall mounted socket 9342

Ampere 16 A
Poles 5 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP67
Enclosure material Plastic, high resistance to chemicals / AMELAN
Weight 407 g
Certifications VDE

Directives

Wall mounted socket 9342

Appropriate products

Wall mounted socket 9342 with IP67

MENNEKES Plug AM-TOP® 288

Plug AM-TOP®

Part no. 288

  • Protection type: IP67
  • Ampere: 16 A
  • Poles: 5 p
  • Voltage: 400 V
  • Connection technology: Screw terminals
MENNEKES Panel mounted socket 1485

Panel mounted socket

Part no. 1485

  • Protection type: IP67
  • Ampere: 16 A
  • Poles: 5 p
  • Voltage: 400 V
  • Connection technology: Screw terminals
MENNEKES Wall mounted socket DUOi 5612506G

Wall mounted socket DUOi

Part no. 5612506G

  • Protection type: IP67 / IP69
  • Ampere: 16 A
  • Poles: 5 p
  • Voltage: 400 V
  • Connection technology: Screw terminals
MENNEKES Connector AM-TOP® 550

Connector AM-TOP®

Part no. 550

  • Protection type: IP67
  • Ampere: 16 A
  • Poles: 5 p
  • Voltage: 400 V
  • Connection technology: Screw terminals

Appropriate accessories

Wall mounted socket 9342

MENNEKES Weather shield 15542

Weather shield

Part no. 15542

made from stainless steel (material 1.4301), with side blinds, for mounting on column, dimensions (H x W x D): 226 x 155 x 131/52 mm
