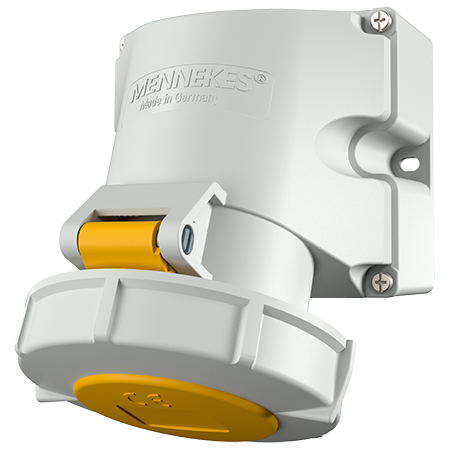

MENNEKES Wall mounted socket 9350

Wall mounted socket 9350

Ampere 16 A 32 A
Poles
Voltage
Clock position
  • enclosure base can be turned 180°
  • sockets are designed for adding an auxiliary contact switch
  • Part no.9350
  • EAN4015394280491
  • Std. Pack. 5

Technical specifications

Wall mounted socket 9350

Ampere 32 A
Poles 3 p
Voltage 110 V
Clock position 4 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP67
Enclosure material Plastic, high resistance to chemicals / AMELAN
Weight 512 g
Certifications EAC

Datasheets & Downloads

Wall mounted socket 9350

Product infoWall mounted socket 9350 PDF, 204 KB
Dimensional drawing portraitWall mounted socket 9350 PNG, 133 KB
Dimensional drawing landscape formatWall mounted socket 9350 PNG, 135 KB

Directives

Wall mounted socket 9350

REACh
RoHS
