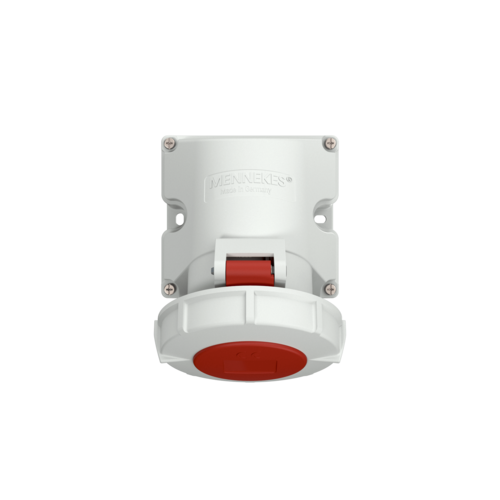

MENNEKES Wall mounted socket 9352
MENNEKES Wall mounted socket 9352 images3d

Wall mounted socket 9352

Poles
Voltage
Clock position
  • enclosure base can be turned 180°
  • sockets are designed for adding an auxiliary contact switch
  • Part no.9352
  • EAN4015394280620
  • Std. Pack. 5
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name
Resistant to chemicals

Resistant to chemicals

Increased chemical resistance

Technical specifications

Wall mounted socket 9352

Ampere 32 A
Poles 3 p
Voltage 400 V
Clock position 9 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP67
Enclosure material Plastic, high resistance to chemicals / AMELAN
Weight 510 g
Certifications EAC

Directives

Wall mounted socket 9352

Appropriate accessories

Wall mounted socket 9352

MENNEKES Weather shield 15542

Weather shield

Part no. 15542

made from stainless steel (material 1.4301), with side blinds, for mounting on column, dimensions (H x W x D): 226 x 155 x 131/52 mm
