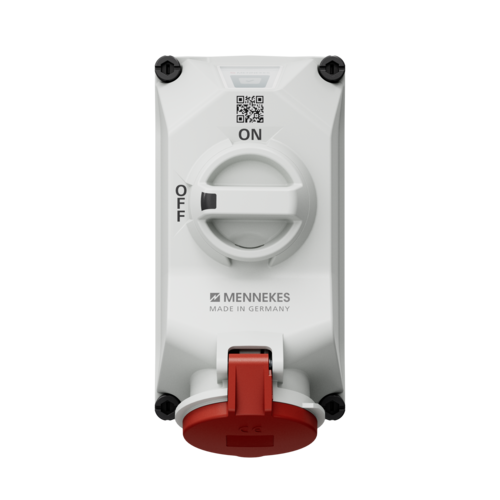

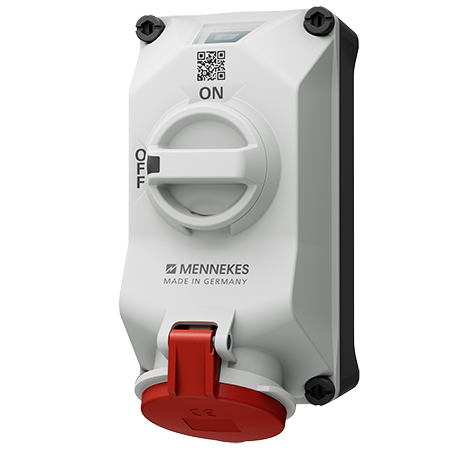

MENNEKES Wall mounted socket DUOi 5613406H
MENNEKES Wall mounted socket DUOi 5613406H images3d

Please accept marketing-cookies to watch this video.

Video varieties

Wall mounted socket DUOi 5613406H

Twice the protection - our DUOi wall socket impresses with its particularly secure DUO locking mechanism. This prevents the plug from being pulled out under current load, and when switched off, the DUOi can be additionally secured with a Lockout-Tagout padlock. The DUOi wall socket with IP44 protection is protected against the ingress of foreign bodies and splash water. The clearly visible LED lights up green when switched on and goes out in the event of a power flow fault.
Poles
Voltage
Clock position
  • screw terminals
  • LED voltage indicator
  • pre-wired for installation
  • X-CONTACT
  • switched
  • mechanical DUO-interlock
  • highly heat resistant contact carrier
  • 3 pole switch with auxiliary contact switch 1 NC and 1 NO
  • sockets can be padlocked
  • Part no.5613406H
  • EAN4015394303909
  • Std. Pack. 1 Qty.
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name
X-CONTACT®

X-CONTACT®

Innovative contact sleeve technology

Technical specifications

Wall mounted socket DUOi 5613406H

Ampere 32 A
Poles 4 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact X-CONTACT
Protection type IP44
Enclosure material Plastic
Weight 1325 g
