MENNEKES Wall mounted socket DUOi 5614306G

Please accept marketing-cookies to watch this video.

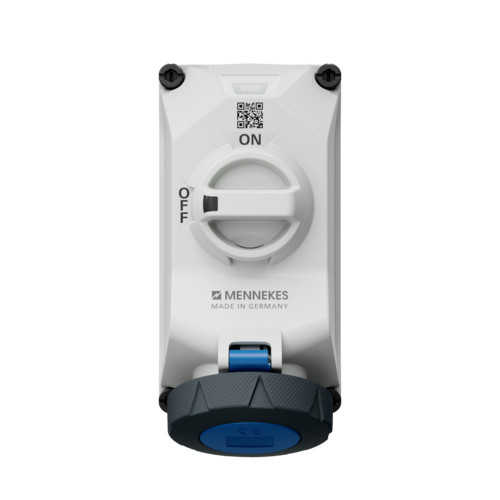

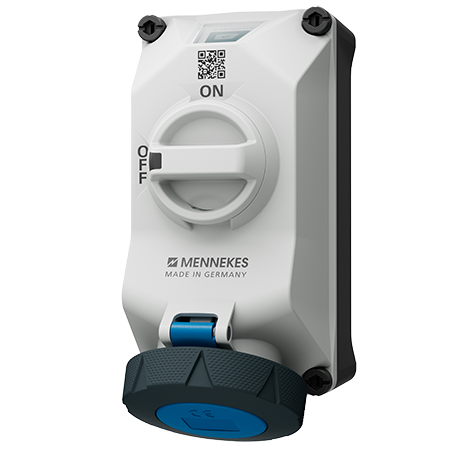

Wall mounted socket DUOi 5614306G

Name: Wall mounted socket DUOi
Brand: MENNEKES
SKU: 5614306G

Twice the protection - our DUOi wall mounted socket impresses with its particularly secure DUO locking mechanism. This prevents the plug from being pulled out under load, and when switched off, the...Read more

Ampere 16 A 32 A

Poles

Voltage

Clock position

screw terminals
LED voltage indicator
pre-wired for installation
X-CONTACT
switched

mechanical DUO-interlock
highly heat resistant contact carrier
3 pole switch
sockets can be padlocked

Part no.5614306G
EAN4015394303039
Std. Pack. 1 Qty.

Screw terminals

Standard screw terminals

X-CONTACT®

Innovative contact sleeve technology

Technical specifications

Wall mounted socket DUOi 5614306G

Ampere	32 A
Poles	3 p
Voltage	230 V
Clock position	6 h
Hertz	50-60 Hz
Connection technology	Screw terminals
Contact	X-CONTACT
Protection type	IP67 / IP69
Enclosure material	Plastic
Weight	1327 g
Certifications	VDE CQC
