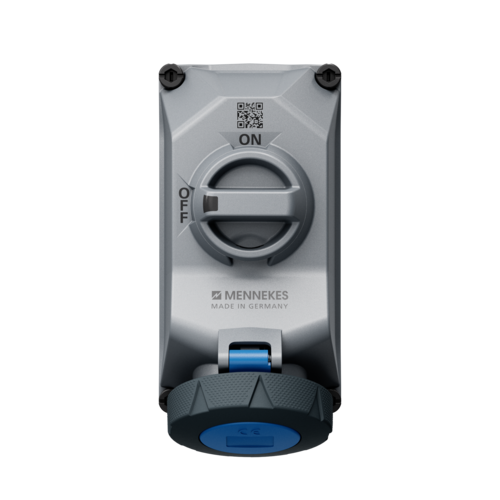

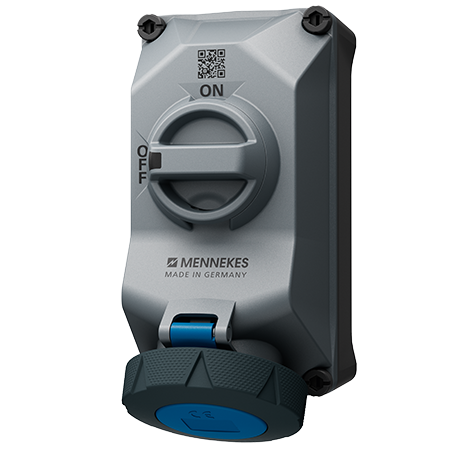

Wall mounted socket R 5804306G
Voltage
Clock position
- screw terminals
- pre-wired for installation
- X-CONTACT®
- highly resistant to chemicals
- switched
- mechanical DUO-interlock
- highly heat resistant contact carrier
- nickel plated contacts
- 3 pole switch
- sockets can be padlocked
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
- Please enter a list name
- The list name already exists
- Please enter a valid list name
Technical specifications
Wall mounted socket R 5804306G
| Ampere | 32 A |
|---|---|
| Poles | 3 p |
| Voltage | 230 V |
| Clock position | 6 h |
| Hertz | 50-60 Hz |
| Connection technology | Screw terminals |
| Contact |
nickel plated contacts X-CONTACT highly heat resistant contact carrier |
| Protection type | IP67 |
| Enclosure material | Plastic, high resistance to chemicals / AMELAN |
| Weight | 1402 g |
| Certifications | EAC |
