MENNEKES Wall mounted socket with TwinCONTACT 420
MENNEKES Wall mounted socket with TwinCONTACT 420 images3d

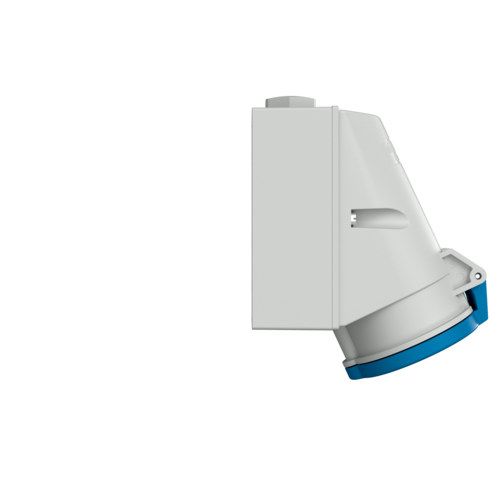

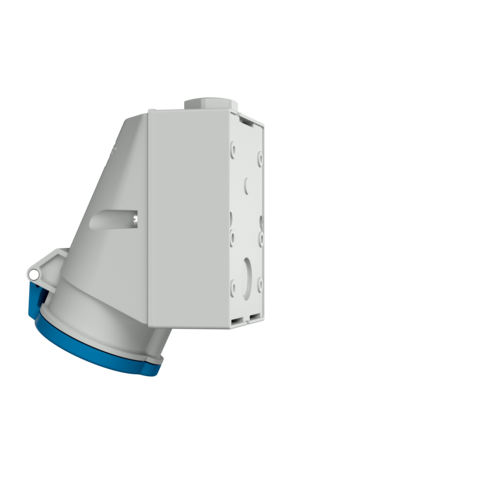

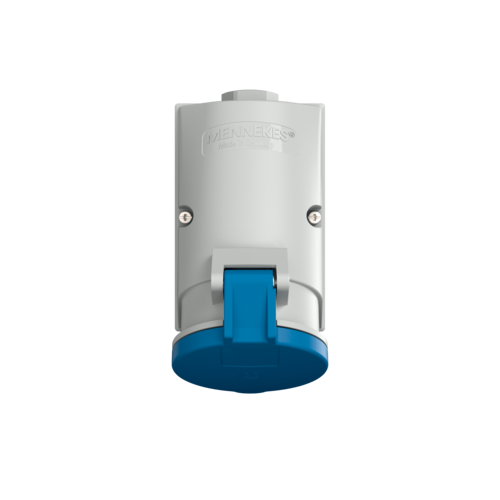

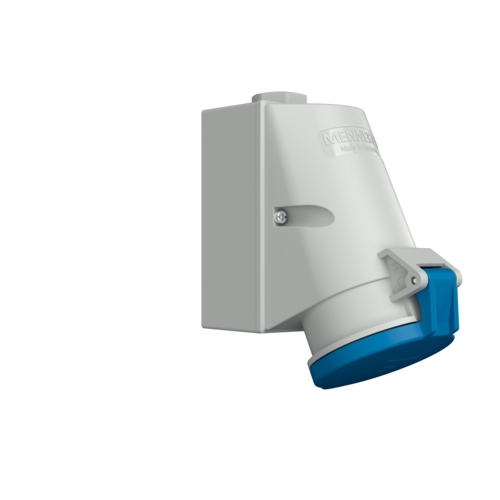

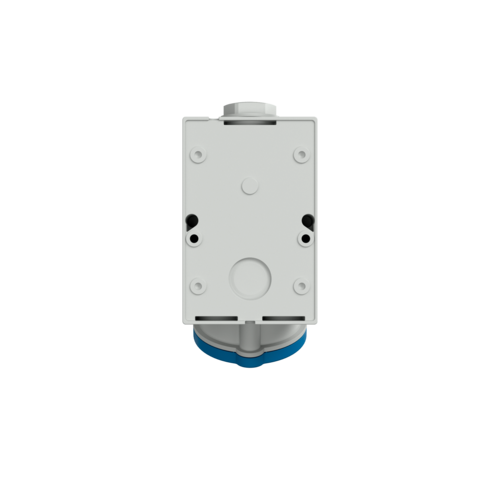

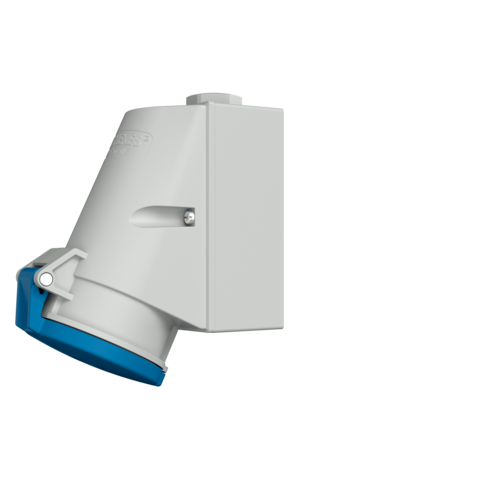

Wall mounted socket with TwinCONTACT 420

The universal CEE socket for trade and industry with freely selectable connection direction.

Poles
Voltage
Clock position
  • screwless spring terminals
  • suitable for through wiring
  • internal fixing
  • enclosure base can be turned 180°
  • sockets are designed for adding an auxiliary contact switch
  • Part no.420
  • EAN4015394213994
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name
TwinCONTACT

Screwless - TwinCONTACT

Screwless spring terminals

Technical specifications

Wall mounted socket with TwinCONTACT 420

Ampere 32 A
Poles 3 p
Voltage 230 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screwless - TwinCONTACT
Contact standard
Protection type IP44
Weight 210 g
Certifications VDE

Directives

Wall mounted socket with TwinCONTACT 420

Appropriate accessories

Wall mounted socket with TwinCONTACT 420

MENNEKES Auxiliary contact block 41000

Auxiliary contact block

Part no. 41000

for sockets and panel mounted sockets 16 A and 32 A of product groups 1018, 1019, 1041, 1049, 1132, 1141, 1146 and 1148 as well as 32 A of product groups 1044, 1048, 1133 and 1135, funktion: change-over contact = NC/NO, connected load: 16 A (inductive 4 A), 250 V AC
