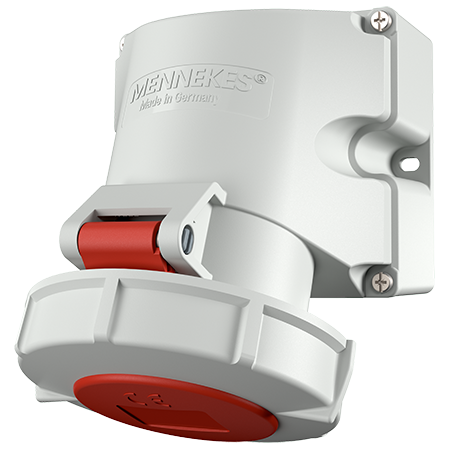

Wall mounted socket with TwinCONTACT 9182
The waterproof and dustproof CEE wall mounted socket for use in harsh environmental conditions.
Voltage
Clock position
- screwless spring terminals
- highly resistant to chemicals
- suitable for through wiring
- with 2 external fixing points
- sockets are designed for adding an auxiliary contact switch
- enclosure base can be turned 180°
Technical specifications
Wall mounted socket with TwinCONTACT 9182
| Ampere | 32 A |
|---|---|
| Poles | 5 p |
| Voltage | 400 V |
| Clock position | 6 h |
| Hertz | 50-60 Hz |
| Connection technology | Screwless - TwinCONTACT |
| Contact | standard |
| Protection type | IP67 |
| Enclosure material | Plastic, high resistance to chemicals / AMELAN |
| Weight | 495 g |
| Certifications | VDE |
