Show all Wall mounted sockets / Show all [Translate to English (GB):] P-6013017-02
Show all SCHUKO® / Show all Wall mounted socketSCHUKO®

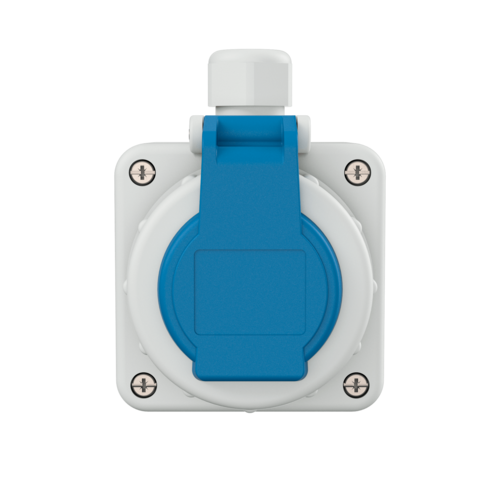

MENNEKES Wall mounted socketSCHUKO® 10863
MENNEKES Wall mounted socketSCHUKO® 10863 images3d

Wall mounted socketSCHUKO® 10863

Ampere 16 A
Poles
Voltage
  • screw terminals
  • hinged bayonet lock lid
  • Part no.10863
  • EAN4015394035701
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Wall mounted socketSCHUKO® 10863

Ampere 16 A
Poles 2 p+E
Voltage 230 V
Connection technology Screw terminals
Contact standard
Protection type IP68
Shutter No
Weight 178 g
Certifications EAC

Datasheets & Downloads

Wall mounted socketSCHUKO® 10863

Product infoWall mounted socketSCHUKO® 10863 PDF, 224 KB
Manufacturer‘s declarationWall mounted socketSCHUKO® 10863 PDF, 210 KB
CAD data STPWall mounted socketSCHUKO® 10863 ZIP, 305 KB
CAD data 3D DWGWall mounted socketSCHUKO® 10863 ZIP, 881 KB
Dimensional drawing portraitWall mounted socketSCHUKO® 10863 PNG, 69 KB
Dimensional drawing landscape formatWall mounted socketSCHUKO® 10863 PNG, 146 KB

Directives

Wall mounted socketSCHUKO® 10863

REACh
RoHS

Appropriate accessories

Wall mounted socketSCHUKO® 10863

MENNEKES Weather shield 15542

Weather shield

Part no. 15542

made from stainless steel (material 1.4301), with side blinds, for mounting on column, dimensions (H x W x D): 226 x 155 x 131/52 mm
