Weather shield 15682

made from stainless steel (material 1.4301)
with side blinds
cover can be removed from the back

for wall mounting or on a column 15530
dimensions (H x W x D): 496.5 x 254 x 250 mm
surface: bright finish

Part no.15682
EAN4015394226444
Std. Pack. 1

Technical specifications

Weather shield 15682

Datasheets & Downloads

Weather shield 15682

Product infoWeather shield 15682 PDF, 122 KB

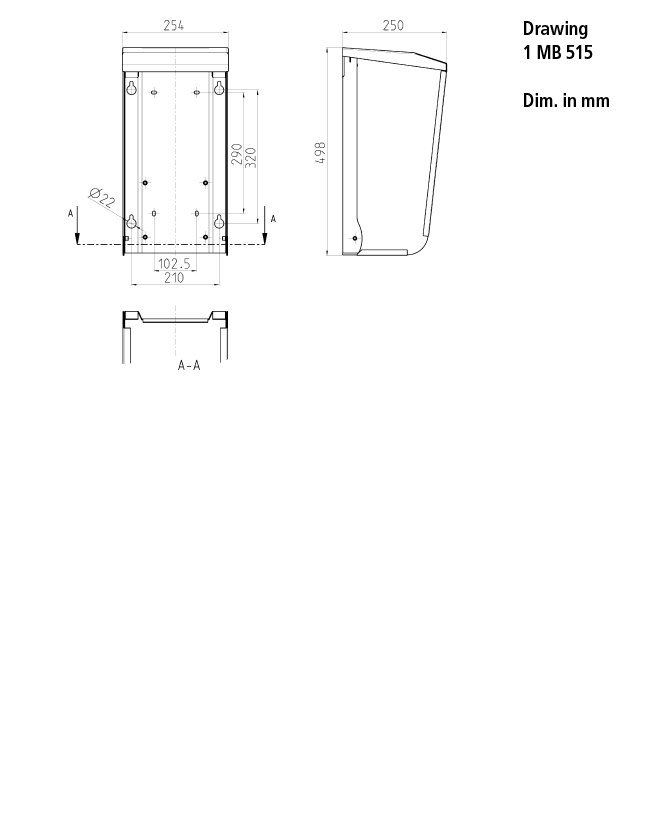

Dimensional drawing portraitWeather shield 15682 PNG, 19 KB

Dimensional drawing landscape formatWeather shield 15682 PNG, 34 KB

Directives

Weather shield 15682

REACh

RoHS
