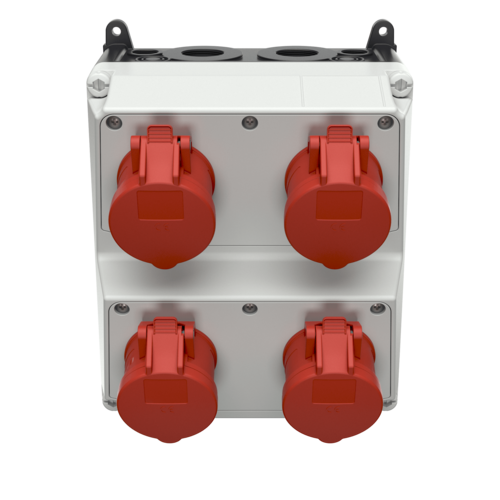

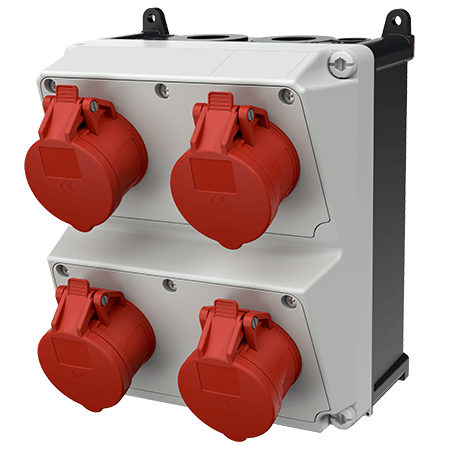

MENNEKES AMAXX® combination unit 920027

AMAXX® combination unit 920027

With AMAXX you combine cleverly and save valuable installation time. Only one supply line, fewer drill holes, fewer cable and pipe clamps and only one enclosure with external mounting that allows...Read more
CEE 16 A, 5 p, 400 V
  • pre-wired for installation
  • hinged to the side
  • Part no.920027
  • EAN4015394223252
  • Std. Pack. 1
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

AMAXX® combination unit 920027

CEE 16 A, 5 p, 400 V 4
Connection/feeder cable
  • for 1 cable up to 5 x 10 mm²
Protection type IP44
Enclosure material Plastic
Weight 3028 g
Height 260 mm
Width 225 mm
Storage receptacle combination B

Datasheets & Downloads

AMAXX® combination unit 920027

Product infoAMAXX® combination unit 920027 PDF, 169 KB
Mounting instructionsAMAXX® combination unit 920027 PDF, 2 MB
Dimensional drawing portraitAMAXX® combination unit 920027 PNG, 101 KB
Dimensional drawing landscape formatAMAXX® combination unit 920027 PNG, 103 KB

Videos

AMAXX® combination unit 920027

Please accept marketing-cookies to watch this video.

Video varieties

Directives

AMAXX® combination unit 920027

REACh
RoHS
